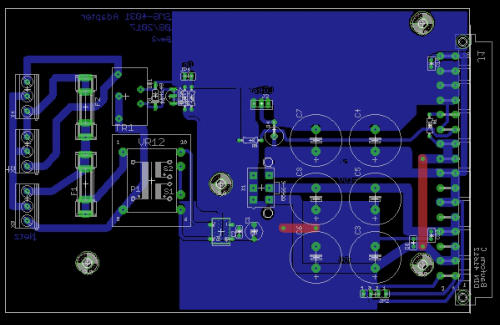

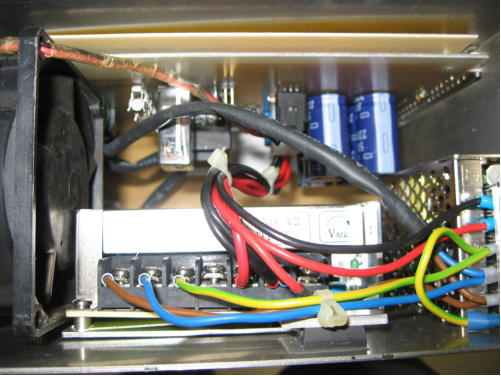

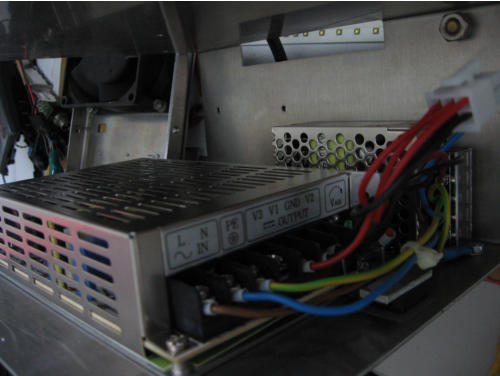

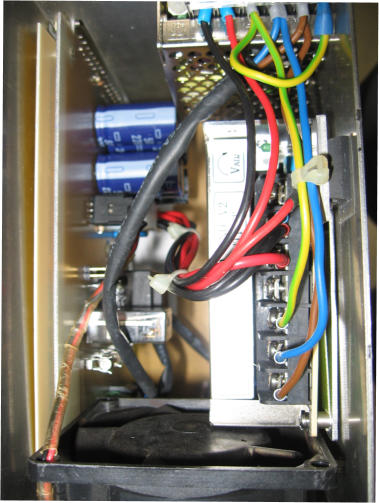

The Power Supply Unit of the Stabilock 4031/4032 is robust for that complexity. But if it fails the repairing is not as easy as thinking. And the obsolet parts of the first issues can let it be irreparable. So I build a PSU from industriell components with a single side adapter pcb. It is build from a 5V/15V 60W PSU from SunPower and a 15V 25W PSU from Meanwell. The 32 pin connector and the 4 pcb-spacers can be recycled because there are not so easy to buy.

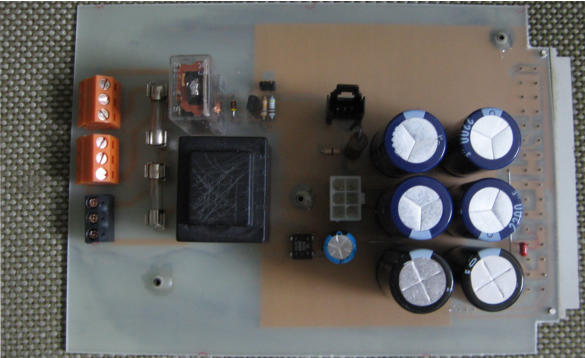

drill and glue (2k-glue) the 4 spacers

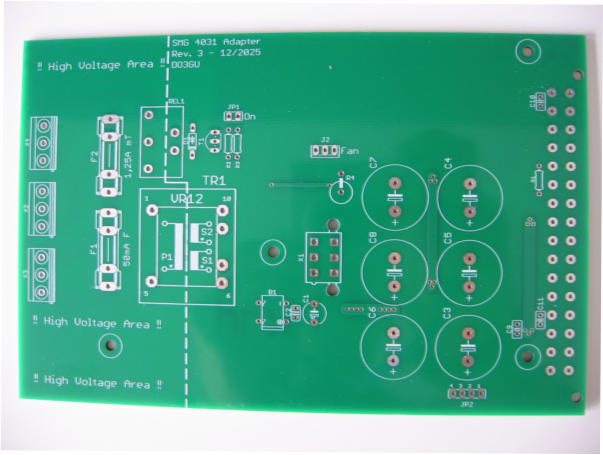

2 wire bridges instead of a double sided pcb
